ZYD two-stage transformer oil decolorization vacuum oil filter
Update: 2020/1/5??????View:
- Brand: ???
- Type: ???
Introduction
The decolorizing vacuum oil filter equipment adopts a special purification agent to purify and regenerate the deteriorated transformer oil and switch oil, and remove the acid composition, suspended substance, precipitated substance and polar substance in the oil. The treated oil does not damage the basic performance and oxidation resistance of the oil, and reaches the new oil standard, while improving the insulation performance and safety performance of the oil.
Purpose of UHP decolorizing vacuum oil filter:
UHP decolorizing vacuum oil filter is used in power plant, power station, power company, power transformation industry, metallurgy, petrochemical, machinery, transportation, railway and other industries. In particular, the transformer field maintenance of large-scale substations and the deep purification of high-grade new oil, imported oil, transformer oil, ultra-high voltage transformer oil and other oil products. It can also be used for vacuum oiling and drying of transformer. Live working on site. The equipment adopts a special purification agent to purify and regenerate the deteriorated transformer oil and switch oil, and remove the acid component, suspended substance, precipitated substance and polar substance in the oil. The treated oil does not damage the basic performance and oxidation resistance of the oil, and reaches the new oil standard, while improving the insulation performance and safety performance of the oil.
Features of UHP decolorizing vacuum oil filter:
1. Double stage vacuum large pumping speed and advanced dehydration and degassing system, adopting large-area three-dimensional flash technology, can quickly and efficiently remove water, impurities, hydrocarbons and other harmful components in the oil, and improve the flash point and withstand voltage strength of insulating oil.
2. It can meet the requirements of vacuum pumping and vacuum oiling of transformer body at the installation or maintenance site.
3. The precise filtration system, high-quality filter element, multi-level filtration and gradual encryption can effectively remove the mechanical impurities in the oil, and configure the automatic detection function of filter element pollution degree.
4. Automatic constant temperature control system, automatic liquid level control system, automatic defoaming control system, automatic pressure protection system and excellent configuration to ensure high-performance operation of the equipment.
5. The whole machine is equipped with interlock safety protection, and the oil discharge system, vacuum system and heating system are interlocked.
6. It is equipped with filter element replacement instruction and filter element saturation shutdown device.
7. Equipped with leakage and overload shutdown device to protect the motor.
8. It is equipped with phase sequence and phase loss protection functions to control the safety of sudden shutdown.
9. It is equipped with an external vacuum interface for the transformer.
10. It has the function of exchanging oil in and out.

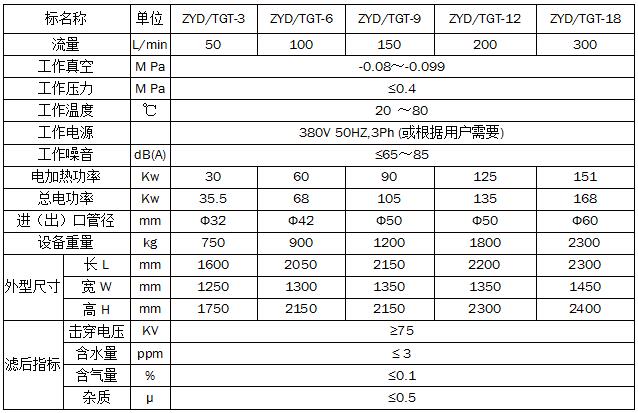

Parameters of UHP decolorizing vacuum oil filter:
